Filter Cart - Hydraulic Oil Filtration System - Standard MNPT Connection (other connectors available)

Professional Hydraulic Oil Filtration System

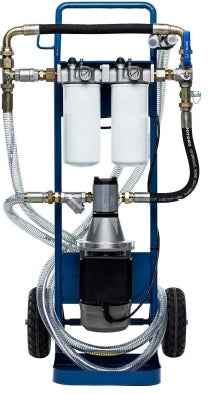

The Hydrafil Filter Cart is a professional-grade mobile filtration system designed for clean-up of contaminated systems, treatment of new or repaired systems, and pre-filtration of new oil. This versatile cart directly transfers oil without exposing it to contaminants, ensuring optimal system performance.

Filter Applications

• Clean-up of contaminated systems
• Treatment of new or repaired systems
• Pre-filtration of new oil

Standard Features

• Dial pressure gauges for accurate monitoring
• Pop-up filter replacement indicators
• Manual filter bypass capability
• Minimess® sample valve
• Y strainer for additional protection
• UL listed motor and electricals
• Includes 1" and 3/4" hoses

Customizable Options

• Flow Rates: 2GPM, 5GPM, or 10GPM
• Hose Connectors: ISO-A, ISO-B, MNPT Standard MNPT Connection (other connectors available)
• Filter Options: 3μm, 6μm, 12μm, 25μm, or Water Removal

Performance Specifications

• 120V @ 60HZ 1PH Power Connection
• Filters oils up to ISO VG 680 at 40°C/104°F
• Filter indicator activates at 20 psid/1.5 bar
• Pump relief opens at 65 psid/4.14 bar
• Weight: Approximately 125 lbs/57 kg (varies by options)
• Dimensions: 19"L x 23"W x 46"H

Construction Materials

• Frame: Carbon Steel
• Filter Heads: Aluminum
• Fittings: Zinc plated steel, Stainless Steel, Brass
• Pumps: Aluminum, Steel
• Hoses: Clear PVC with Steel Wire
• Gaskets: Buna-N

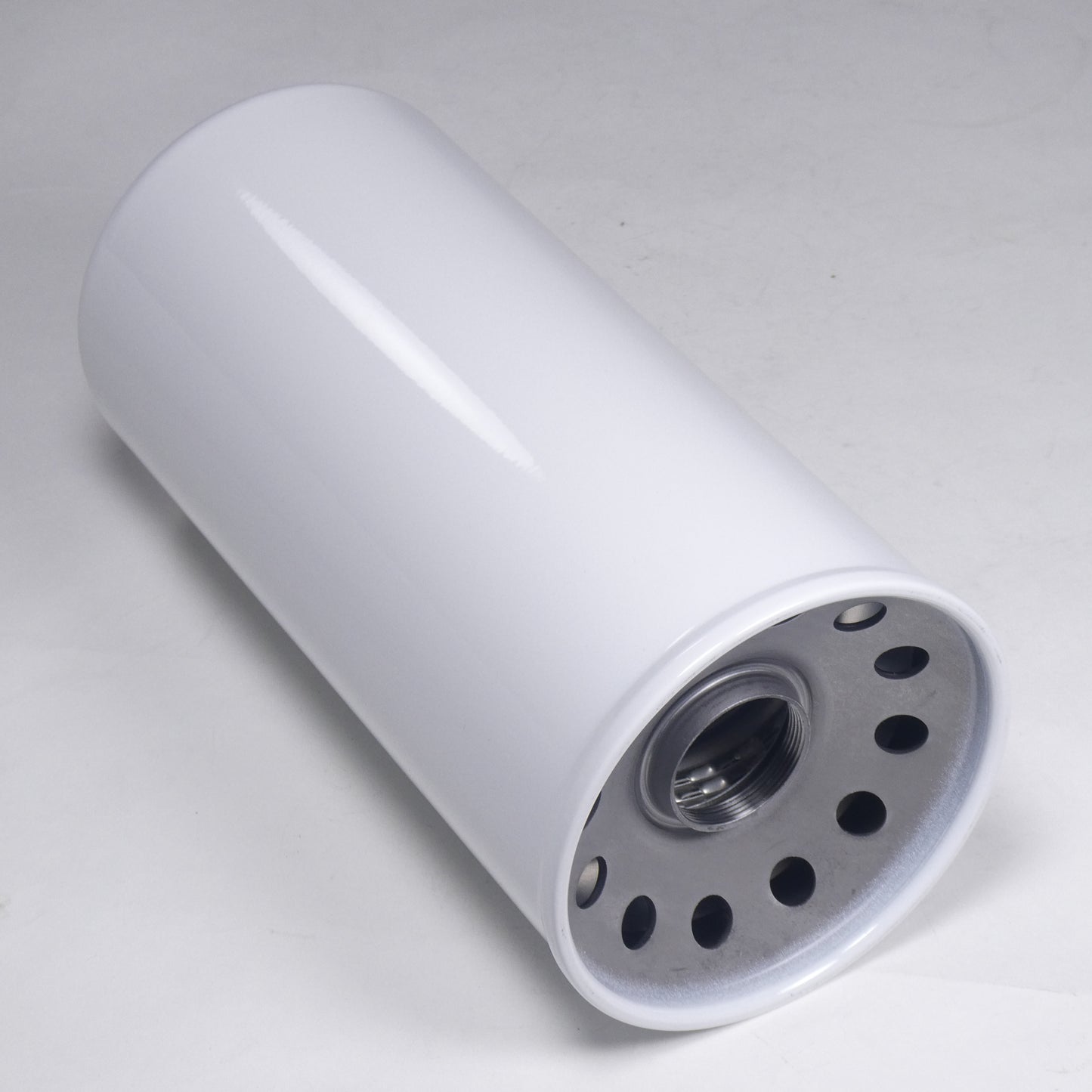

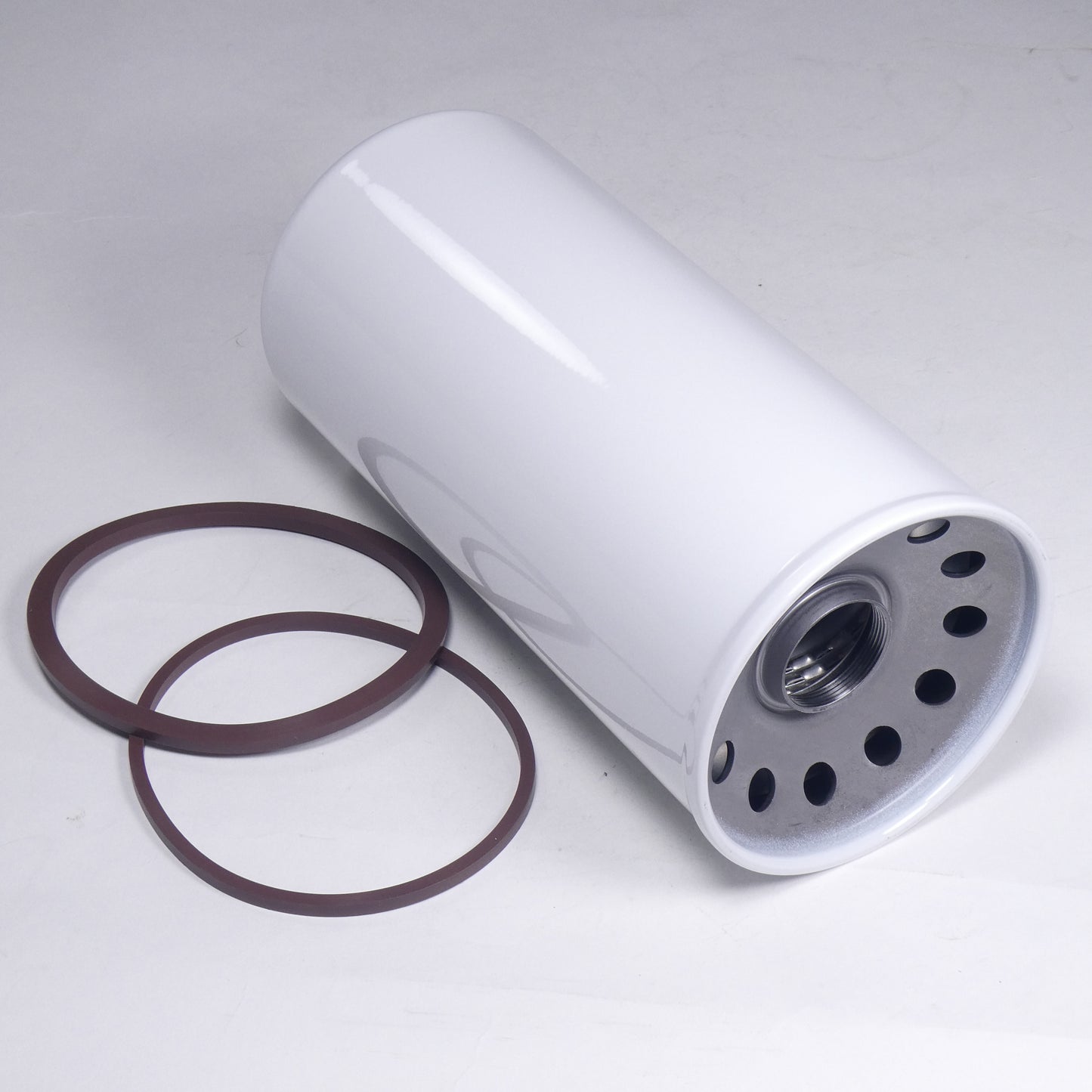

Replacement Filter Elements

Order the correct replacement filter element for your Filter Cart based on your micron rating:
