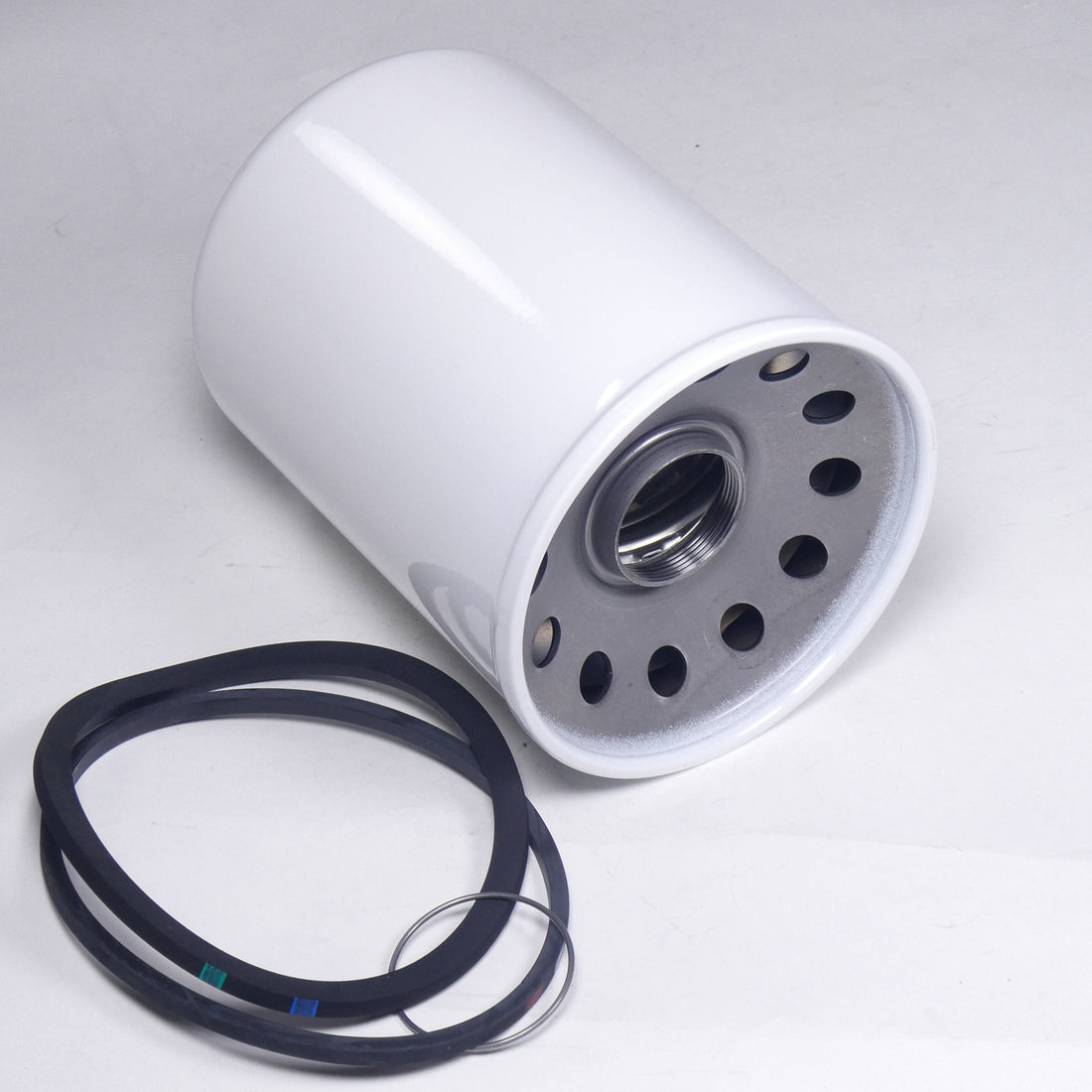

Pall HC7500SUT4H Replacement Filter Element — Cross-Reference & Specifications
Hydrafil Part Number: BF-PAL-884706-L4-25MB | Ships same day from Detroit, MI | OEM-equivalent performance
If you need a replacement for the Pall HC7500SUT4H, you’re maintaining a medium-pressure hydraulic system and need an element that meets original performance specifications — without paying OEM prices. The Hydrafil BF-PAL-884706-L4-25MB is a direct drop-in replacement built to the same dimensional and performance standards using microglass fiber media manufactured and sourced in the USA.
Dimensional Specifications
The BF-PAL-884706-L4-25MB matches the HC7500SUT4H in all critical dimensions, ensuring proper fitment in your existing filter housing with no modification required.
| Specification | Value |
|---|---|
| Outer Diameter (Top) | 5.06 in |
| Outer Diameter (Bottom) | 5.06 in |
| Element Length | 6.9 in |
| Thread Size | 1.5–16 UNF |
| Collapse Rating | 100 psid |
Media & Construction
Filter media and materials of construction directly affect element life, fluid compatibility, and filtration efficiency. The specifications below match the OEM Pall element:
- Filtration Media: Microglass Fiber — higher dirt-holding capacity and lower pressure drop than cellulose alternatives
- Seal Material: Buna-N (Nitrile) — compatible with petroleum-based hydraulic fluids, standard mineral oils, and most HFA/HFB fire-resistant fluids
- End Caps: Corrosion Resistant Steel — prevents bypass during cold-start high-viscosity conditions
- Center Tube: Corrosion Resistant Steel — maintains structural integrity at system pressure
Filtration Performance Rating
The BF-PAL-884706-L4-25MB achieves 25-micron absolute filtration at Beta 1000 (Bx[c=25µm] = 1000), meaning it removes 99.9% of particles at 25 microns and larger in a single pass. This rating is consistent with the original Pall HC7500SUT4H specification.
The multi-pass Beta rating (Bx[25µm] = 200) reflects 99.5% efficiency under ISO 16889 multi-pass test conditions — the industry standard for hydraulic filter element performance.
Why this matters: Particles in the 10–25 micron range cause accelerated wear in hydraulic pumps, valves, and actuators. Maintaining Beta 1000 performance at replacement intervals is critical for system longevity.
ISO Standards Compliance
Hydrafil filter elements are tested to the same ISO standards required of OEM elements. The BF-PAL-884706-L4-25MB is tested in compliance with:
| ISO Standard | What It Tests |
|---|---|
| ISO 2941 | Collapse & burst resistance |
| ISO 2942 | Fabrication integrity & bypass valve function |
| ISO 2943 | Material compatibility with hydraulic fluids |
| ISO 3724 | Flow fatigue characteristics |
| ISO 3968 | Pressure drop vs. flow rate characteristics |
| ISO 16889 | Multi-pass performance (Beta ratio methodology) |
About the Pall HC7500SUT4H
The Pall HC7500 series is a high-capacity medium-pressure hydraulic filter element widely used in return line and offline filtration applications across industrial and mobile hydraulic systems. The “SUT4H” designation indicates a standard single-pass element with threaded end cap configuration. Common applications include machine tool hydraulics, injection molding equipment, press systems, and industrial power units — anywhere a reliable 25-micron return line element is specified.
Why Order from Hydrafil?
- OEM-equivalent performance at a lower cost per element
- Manufactured and sourced in the USA — Detroit, Michigan facility
- Same-day shipping on in-stock elements
- 200,000+ filter cross-references available
- Technical support from our engineering team: +1 (313) 915-4120
