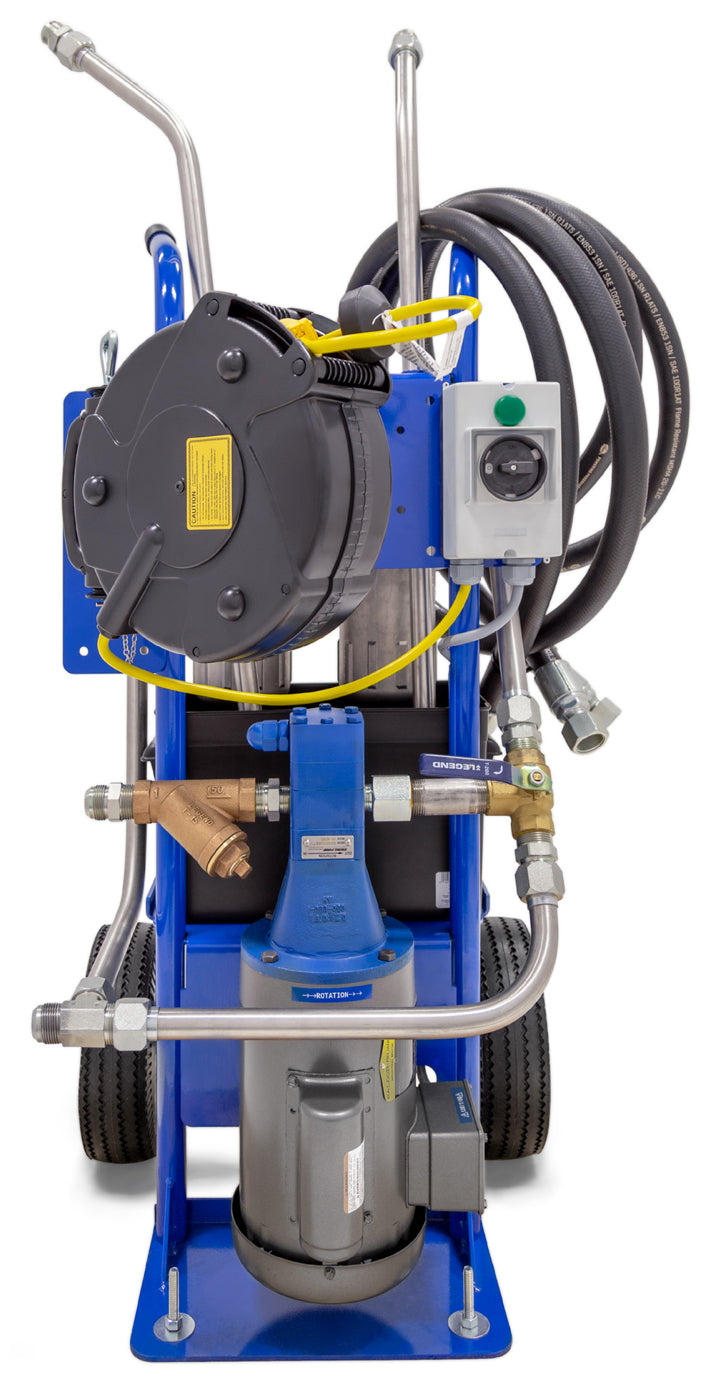

FC Filter Cart
Order and customize your order quickly and easily.
FC Specifications
Get detailed information about the FC
| Dimensions1 |
Height
45” (114 cm) |
Width
20” (50 cm) |
Depth
23” (58 cm) |
Weight
125 lbs (57 kg) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Connections |
Inlet
FC05-FC5: 1” male JIC (37° flare) FC10: 1.25” male JIC (37° flare) |
Outlet
FC05-FC10 1” male JIC (37° flare) FC20: 1.25” male JIC (37° flare) |
Hoses
FC05-FC5: 1” x 10 ft (2.4 m) FC10:1.25” x 10 ft (2.4 m) suction |
|||||||||
| Operating Temperature |
Fluid Temperature
30°F to 225°F (0°C to 105°C) |
Ambient Temperature
-4°F to 104°F (-20C to 40C) |
||||||||||
| ΔP Indicator Trigger | 22 psi (1.5 bar). Consult factory for other options. | |||||||||||
| Filter Assembly Bypass | 25 psid (1.7 bard). Consult factory for other options. | |||||||||||
| Materials of Construction |
Frame
Industrial coated steel |
Filter Assembly
Aluminum head & canister |
Hoses
Reinforced synthetic |
Wands
Stainless Steel |
||||||||
| Electric Motor | TEFC, 56-215 frame 0.5-3 hp, 1450-1750 RPM |
|||||||||||
| Electric Connection | Voltages 230 V ac and under, single phase: 35’ (11 m) retractable cord reel included. NEMA 5-15 plug installed on Power Option 12. Voltages over 230 V ac: 35’ (11 m) power cord included. | |||||||||||
| Motor Starter | MSP (motor starter/protector) in an IP65, aluminum enclosure with short circuit and overload protection. | |||||||||||
| Pump | Cast iron, positive displacement gear pump with internal relief. Maximum pressure on pump inlet 15 psi (1 bar). Consult factory for higher pressures. | |||||||||||
| Pump Bypass | Full bypass at 150 psi (10 bar)2 | |||||||||||
| Pneumatic Option Air Consumption | ~40 cfm @ 80 psi3 35’ (11 m) retractable air hose included when pneumatic option selected (replaces electric cord reel). |
|||||||||||
| Media Description |
M
Microglass, high performance glass media for all hydraulic & lubrication fluids. βx[C] ≥ 4000 |
A
Microglass high performance media combined with water removal scrim. βx[C] ≥ 4000 |
W
Stainless steel wire mesh media βx[C] ≥ 2 |
|||||||||
| Viscosity | 2-5000 cSt4 | |||||||||||
| Fluid Compatibility | Petroleum and mineral based fluids, #2 diesel fuels (standard). For specified synthetics contact factory for compatibility with fluorocarbon seal option. For phosphate | |||||||||||
| Hazardous Environment Options | Select pneumatic powered unit (Power Option 00) or explosion proof NEC Article 501, Class 1, Division 1, Group C+D. Call for IEC, Atex or other requirements. If Explosion Proof option (X--) selected, no electrical cord will be included. | |||||||||||
