CFU Compact Filter Unit
Order and customize your order quickly and easily.

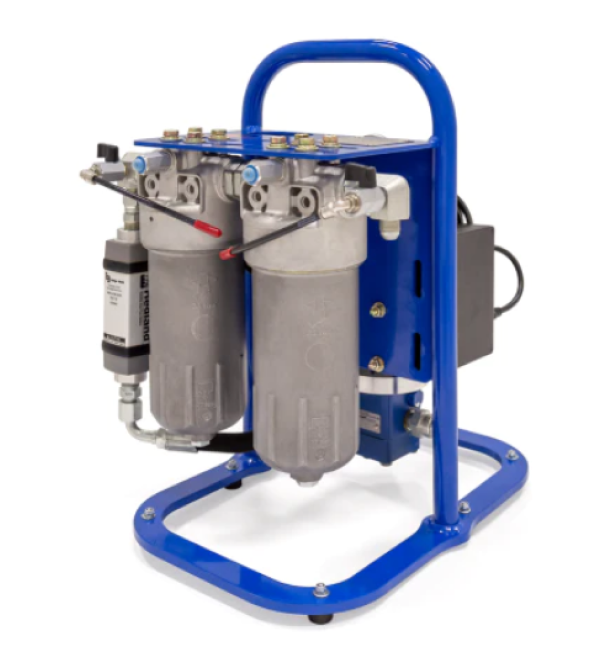

CFUM9 MODEL SHOWN (2X MF90 IN SERIES)
CFU Specifications
Get detailed information about the CFU
| Dimensions1 |
Height
21” (54 cm) |
Length
21” (54 cm) |
Width
12” (31 cm) |
Weight
47 lbs (21 kg) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Connections |
Inlet
¾” male JIC with 37° flare |
Outlet
½” male JIC with 37° flare |
Hoses
¾” x 8 ft (2.4 m) suction female JIC or BSPP swivel ½” x 8 ft (2.4 m) discharge female JIC or BSPP swivel |
|||||||||
| Operating Temperature |
Fluid Temperature
30°F to 225°F ½” x 8 ft (2.4 m) discharge female JIC or BSPP swivel |
Ambient Temperature
4°F to 104°F ½” x 8 ft (2.4 m) discharge female JIC or BSPP swivel |
||||||||||
| ΔP Indicator Trigger | 22 psi (1.5 bar). Consult factory for other options. | |||||||||||
| Filter Assembly Bypass | 25 psid (1.7 bard). Consult factory for other options. | |||||||||||
| Materials of Construction |
Frame
Powder coated aluminum |
Filter Assembly
Filter Assembly Aluminum head |
Hoses
Reinforced synthetic |
Wands
Stainless stee |
Element Bypass Valve
Nylon |
|||||||
| Electric Motor | TEFC, 56C frame 7/16 hp, 1450-1750 RPM | |||||||||||
| Electric Connection | 15’ (4.6 m) cord included installed on machine.2 | |||||||||||
| Pump | Positive displacement gear pump with relief valve. Maximum pressure on pump inlet 15 psi (1 bar). Consult factory for higher pressures. | |||||||||||
| Pneumatic Option Air Consumption | ~15 cfm @ 60 psi3 | |||||||||||
| Media Description |
M
High performance glass media for all hydraulic & lubrication fluids. βx[C] ≥ 4000 (βx ≥ 200) |
A
High performance media combined with water removal scrim. βx[C] ≥ 4000 (βx ≥ 200) |
W
Stainless steel wire mesh media βx[C] ≥ 2 (βx ≥ 2) |
|||||||||
| Viscosity | Max viscosity rated for 200 cSt.4 | |||||||||||
| Fluid Compatibility | Petroleum and mineral based fluids (standard). For specified synthetics contact factory for compatibility with fluorocarbon seal option. For phosphate ester (P9) or skydrol fluid (S9) compatibility select fluid compatibility from special options. | |||||||||||
| Hazardous Environment Options | Select pneumatic powered unit (Power Option 00) or explosion proof NEC Article 501, Class 1, Division 1, Group C+D.Call for IEC, Atex or other requirements. If Explosion Proof option (X--) selected, no electrical cord will be included. | |||||||||||
